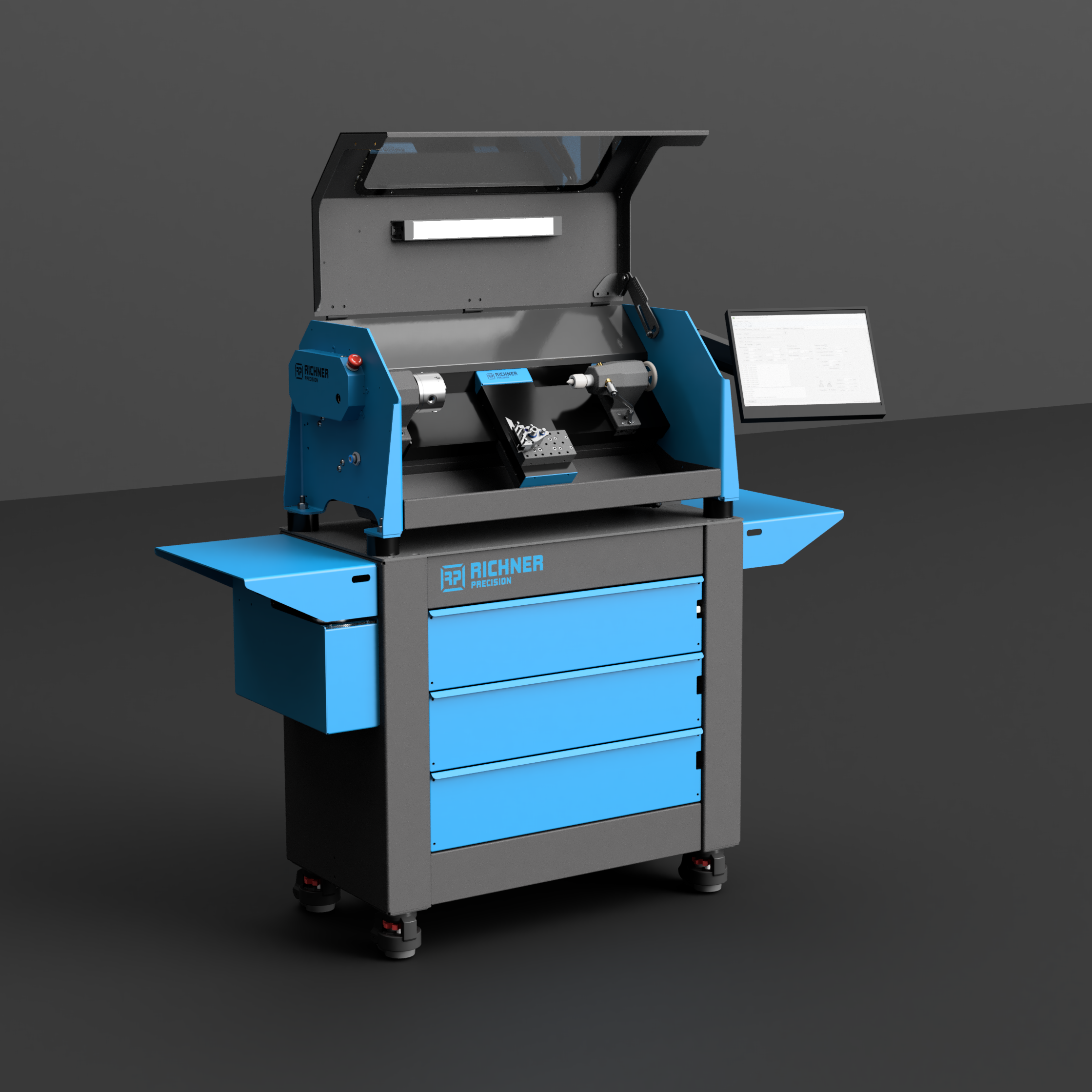

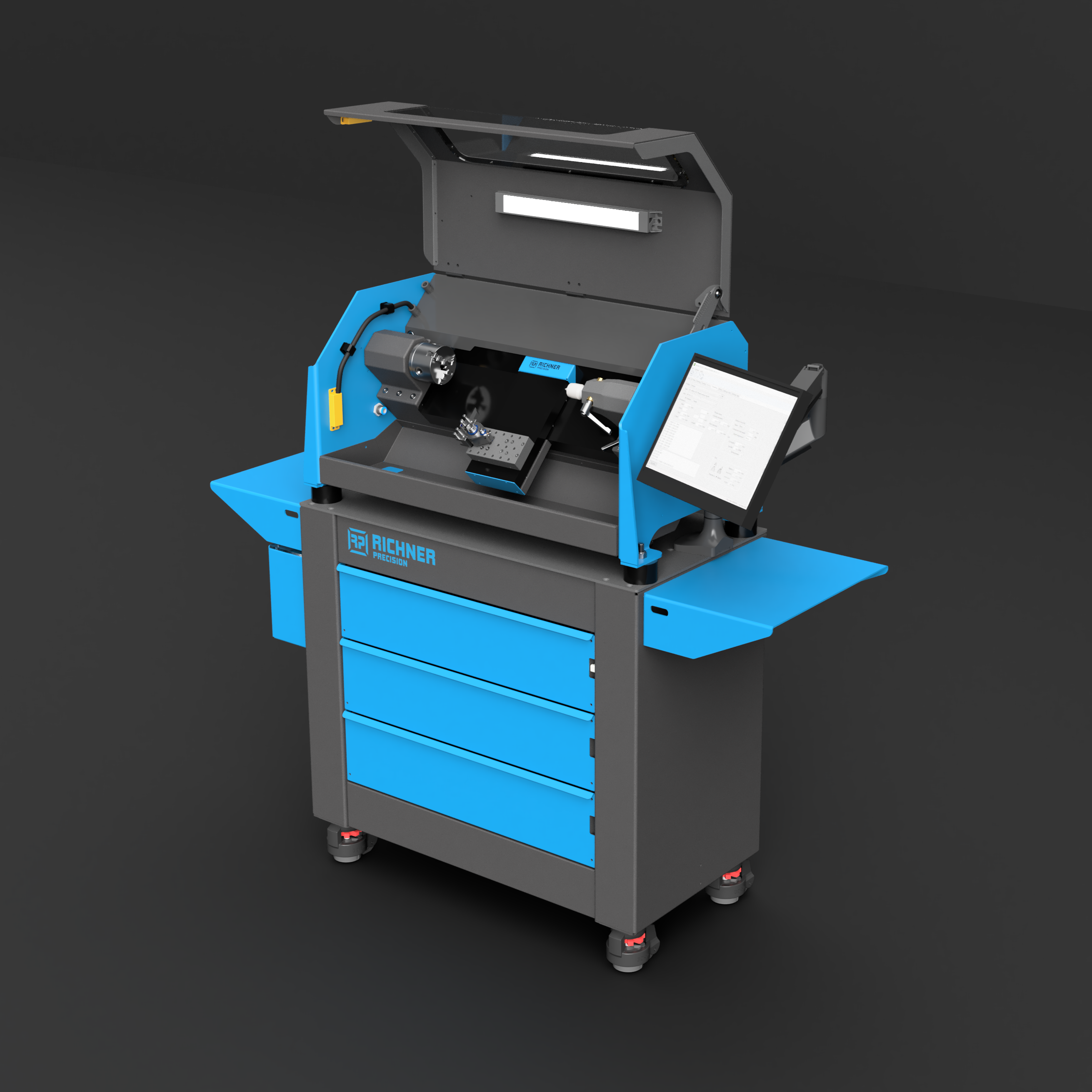

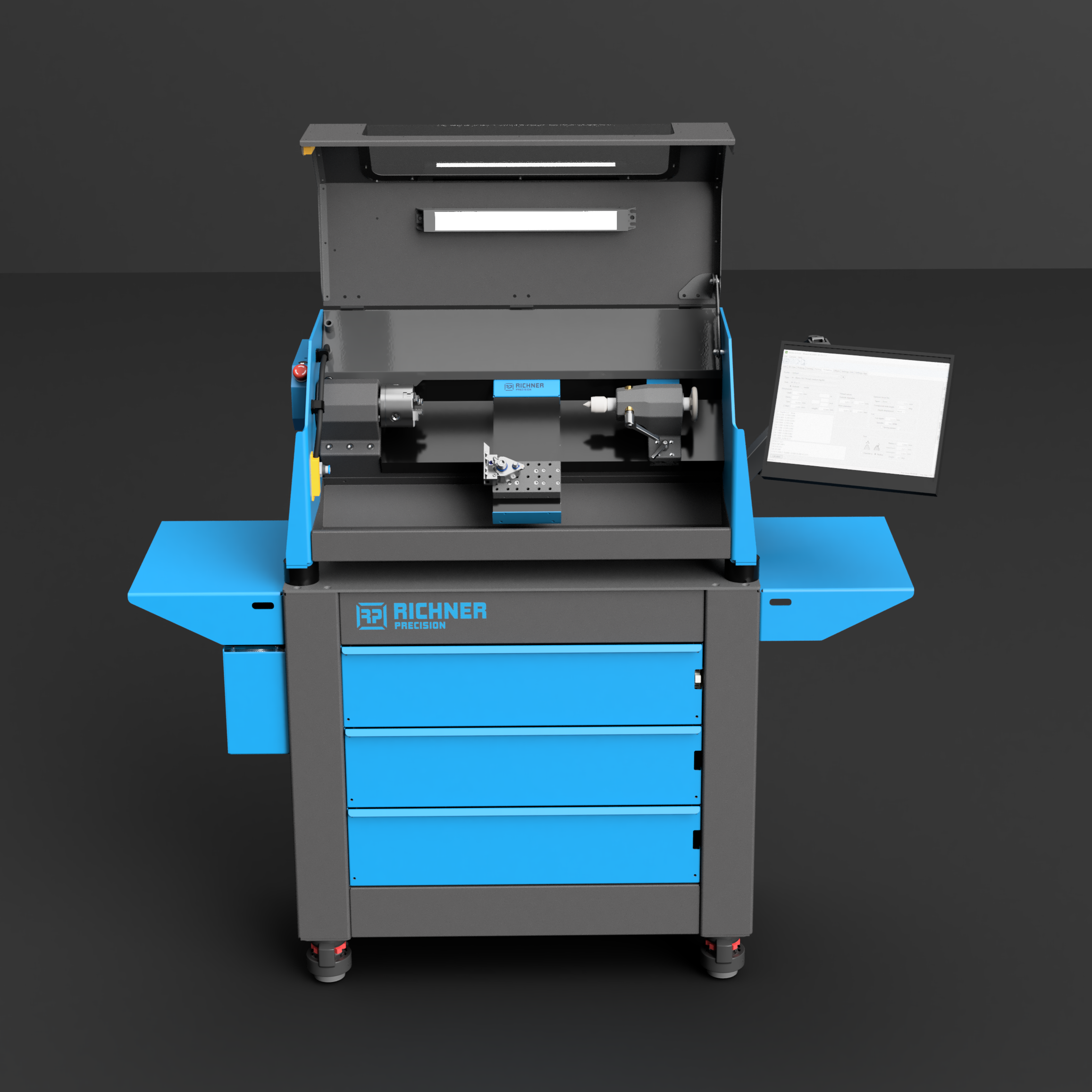

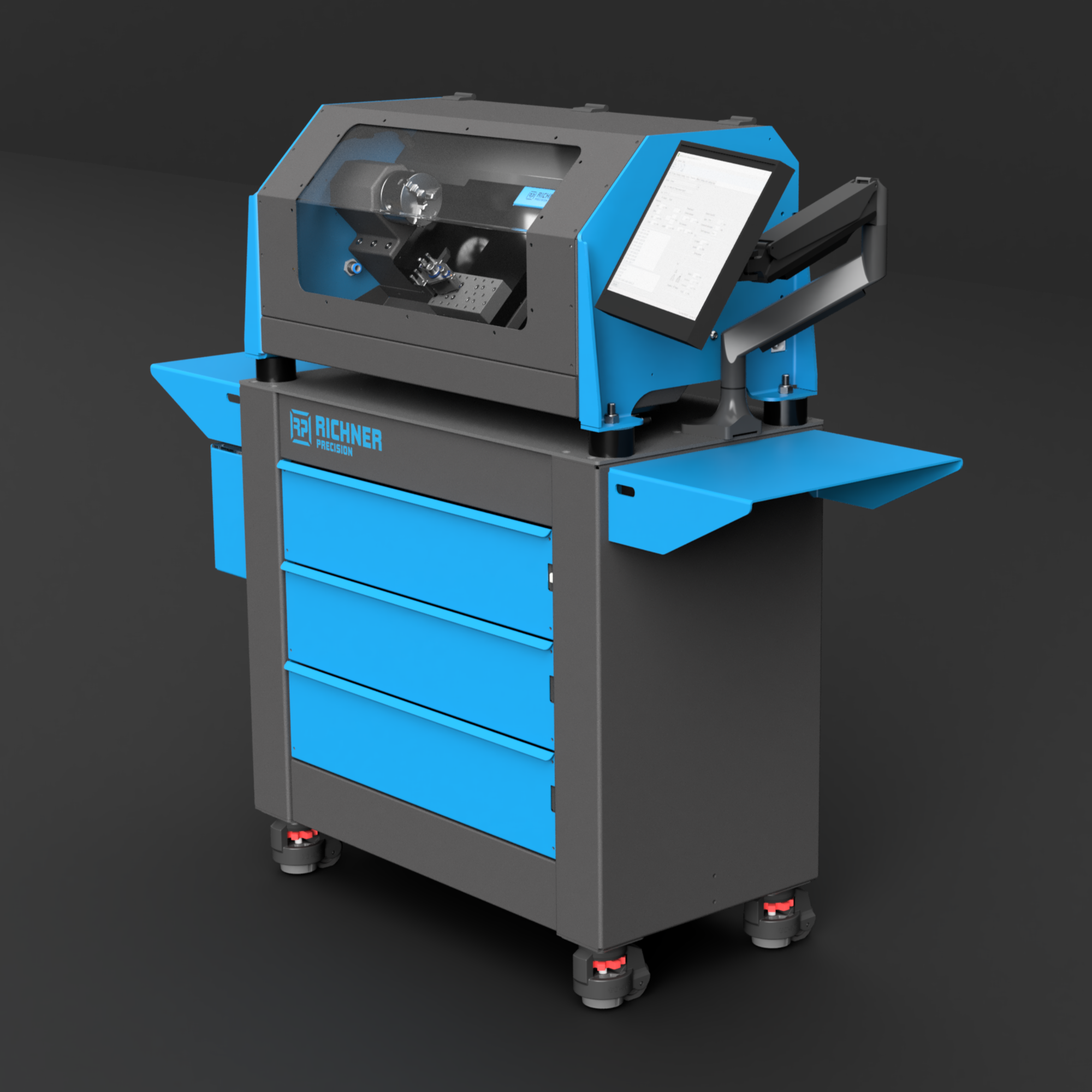

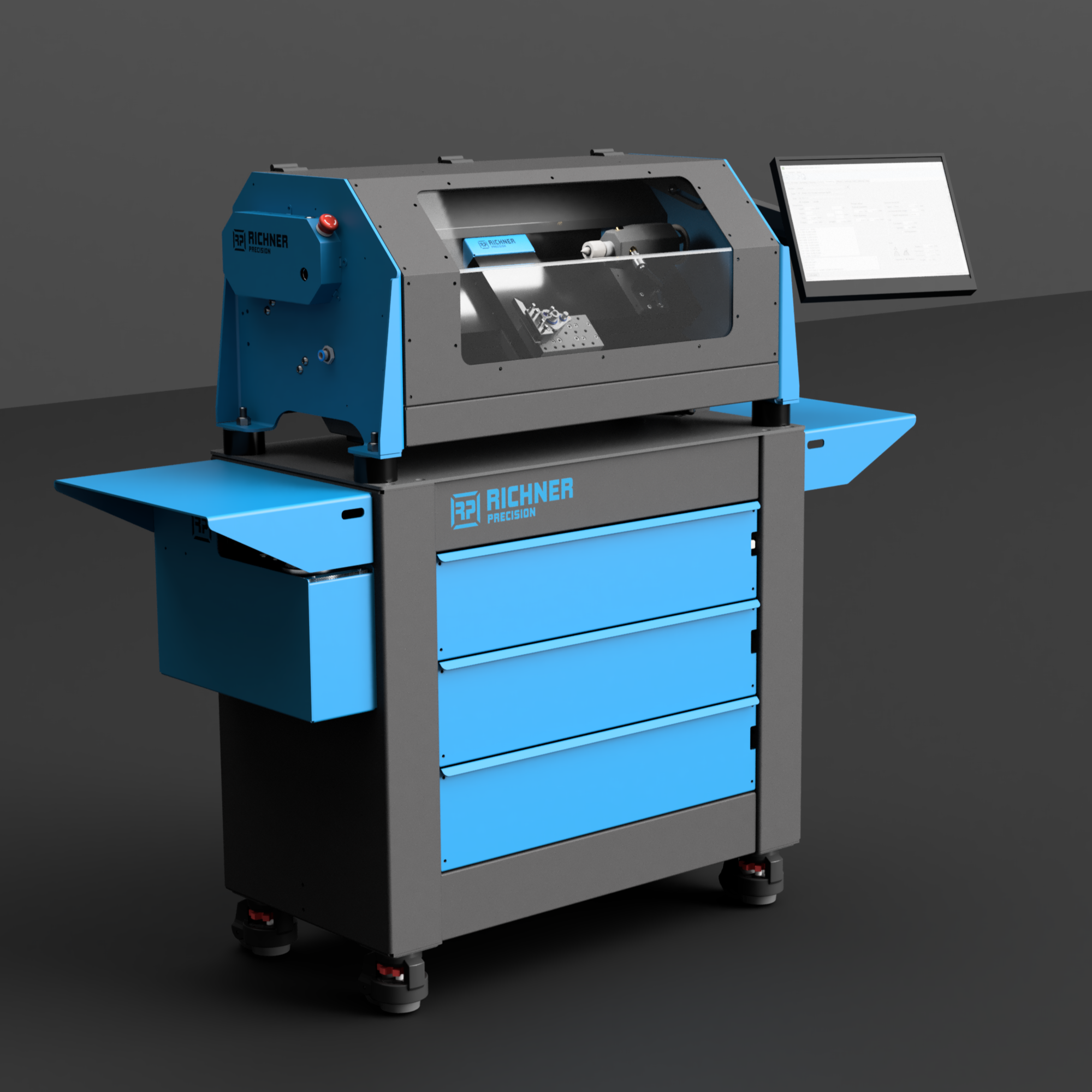

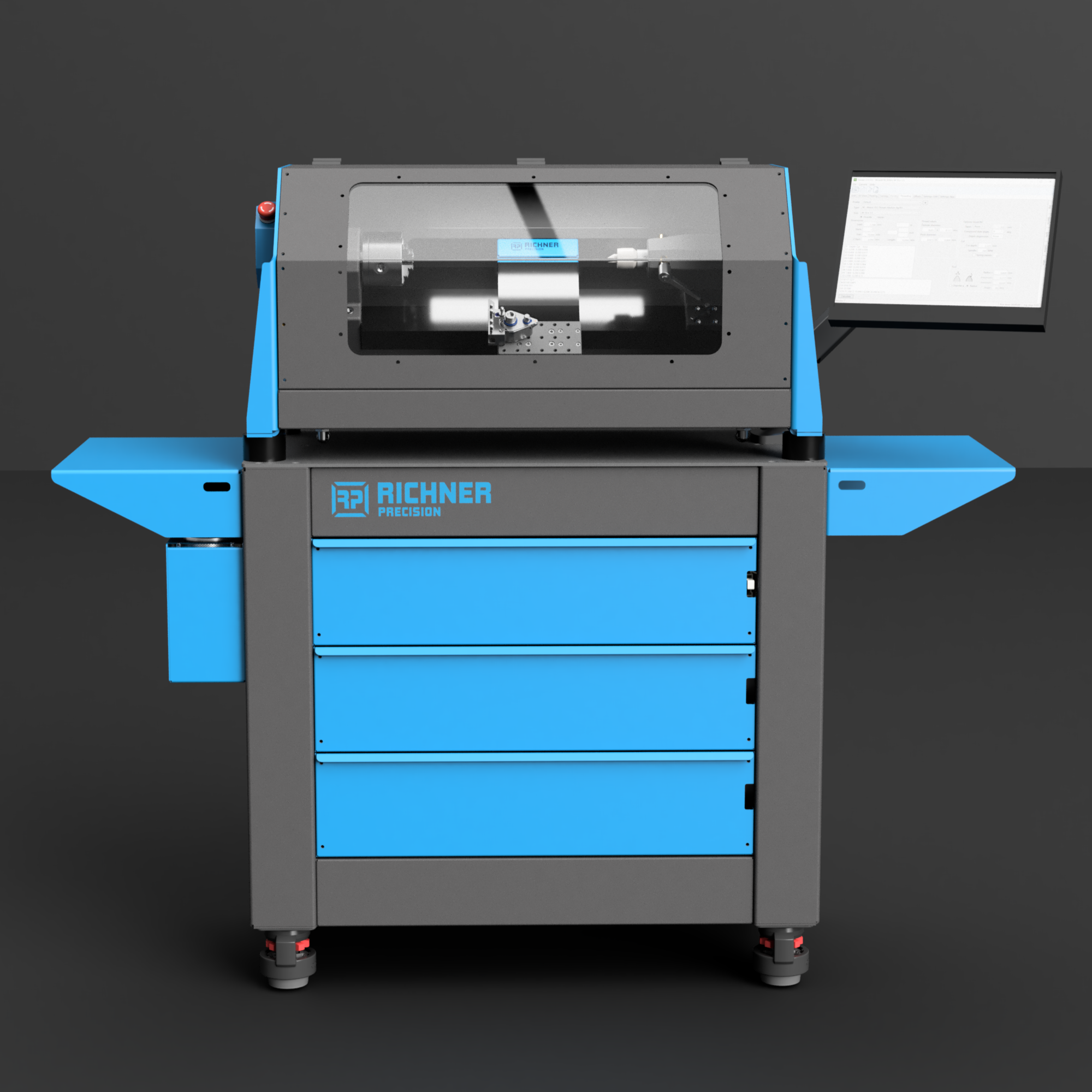

TORQ 8 – Compact CNC Lathe with Industrial Ambition
The TORQ 8 is a precise, robust CNC lathe in a benchtop format – developed for production shops, training centres, and demanding model engineers who want to work on a professional level.
Its heavy-duty cast iron frame, backlash-free C5 ball screws and closed-loop stepper motors ensure smooth operation and high repeatability. With a working area of 120 × 300 mm, an 80 mm three-jaw chuck and a powerful 1 kW spindle (up to 6000 RPM), the TORQ 8 is suitable for a wide range of materials – from aluminium and brass to steel.
An integrated spindle encoder enables features like thread cutting and synchronised operations. The machine is controlled by our high-performance Dominator 32-bit controller.
Thanks to its compact footprint (844 × 420 mm) and standard 230 V power connection, the TORQ 8 can be operated flexibly in a wide variety of environments – with no special installation required.
Starting at CHF 7000.–, the TORQ 8 offers a well-designed entry into precise CNC turning – compact, reliable, and built for real results.
Technical Specifications
Machine Overview
- Manufacturer: Richner-Precision
- Model: TORQ 8
- Machine Type: Compact CNC lathe (benchtop model)
- Axes: 2 main axes (Z, X)
Applications
- Precision-turned parts for small series and prototyping
- Model engineering and demanding small-scale production
- Training and research environments
- Machining of aluminium, brass, steel, plastics and non-ferrous metals
Precision & Mechanics
- Drive resolution: 0.00125 mm
- Drive system: 12 mm C5 ball screws
- Linear guides: 15 mm rails with medium preload
- Motors: 57 mm closed-loop stepper motors
- Max. feed rate: 4 m/min
- Base frame: Cast iron, stress-relieved, machined and precision-ground on all guide surface
Spindle
- Spindle power: 1.34 HP (1 kW)
- Max. speed: 0–6000 RPM, stepless control
- Spindle encoder: Integrated, enables thread cutting and synchronised operations
- Chuck: 80 mm three-jaw chuck
- Max. turning diameter: 145 mm (without cross-slide), 90 mm over cross-slide
- Through-hole: 15 mm
- Tailstock: MT2 taper
Control System
- Controller: Dominator 32-bit
- Program memory: Optional 128 GB
- Homing: Inductive non-contact limit switches
- Interfaces: USB-C
- Optional control unit with Windows 11, 8 GB RAM, 128 GB SSD and touchscreen
Safety Systems
- Integrated safety relay with dual-channel shutdown
- Sick safety door switch
Power Supply
- Power connection: 230 V, 50/60 Hz (single-phase)
- Max. current draw: 6 A
Dimensions & Weight
- Machine footprint only: 844 × 420 mm (L × W)
- Machine height only: 424 mm
- Footprint with stand: 1420 × 440 mm (L × W)
- Height with stand: 1240 mm
- Machine weight: approx. 80 kg (without stand)
- Total weight with stand: approx. 160 kg
Optional Accessories
- Base stand with drawers and side storage
- Control unit with Windows 11, 8 GB RAM, 128 GB SSD and touchscreen
- Tool holders and ER collets
- Flood coolant tank and pump
