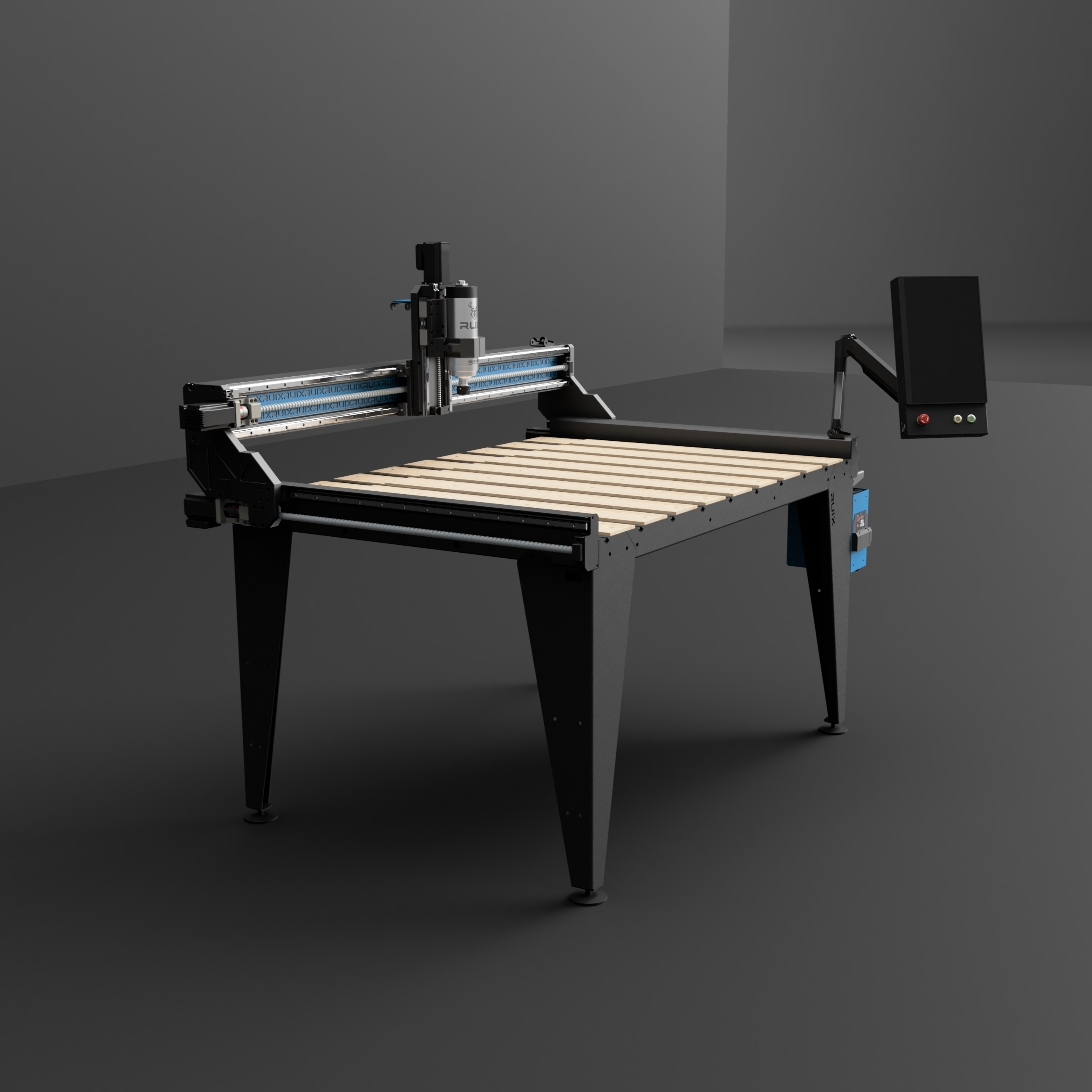

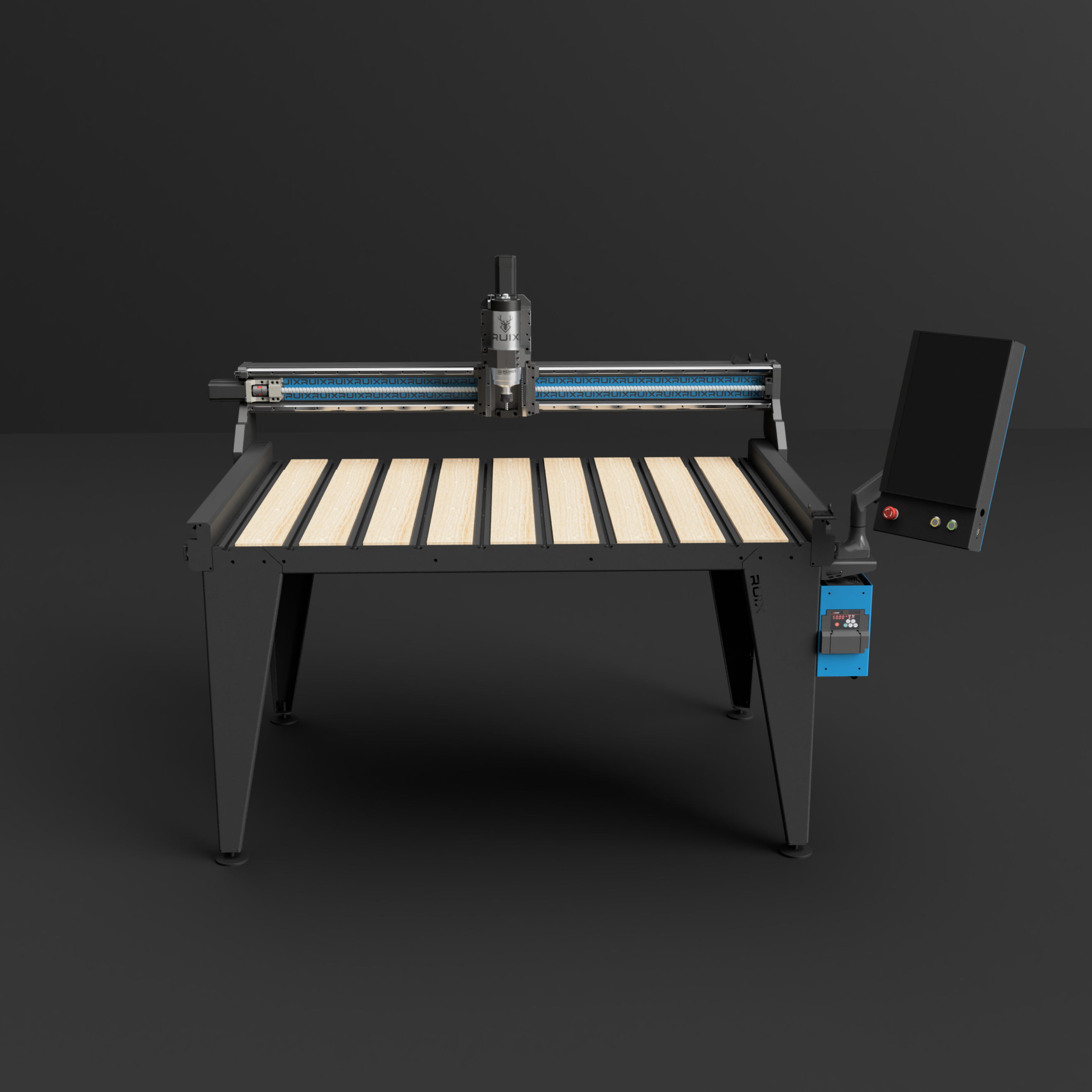

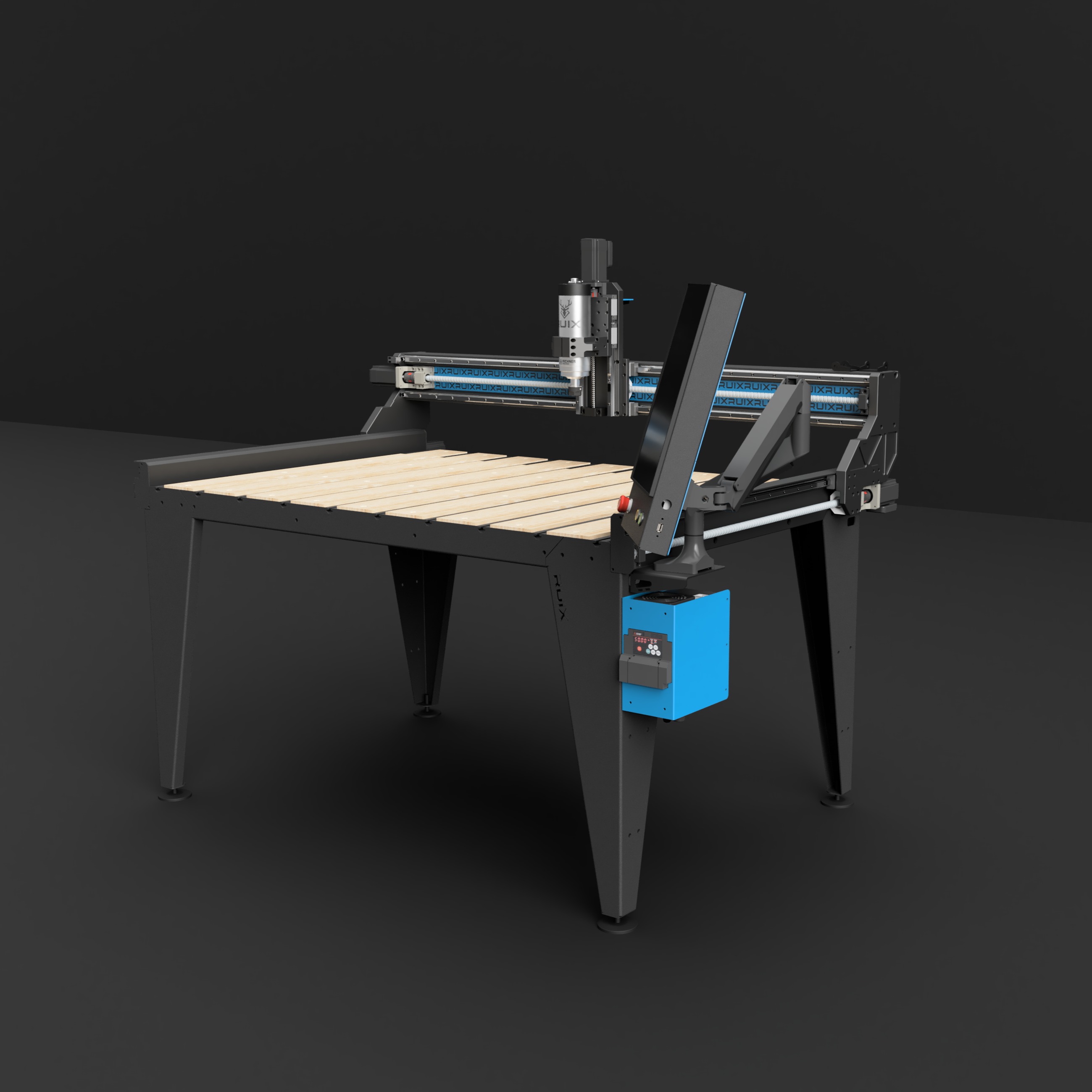

RUIX MK1 – Uncompromising Precision
The RUIX MK1 is a highly rigid CNC gantry milling machine, purpose-built for precise machining of wood, plastics and aluminium. Its solid frame is constructed from custom-designed aluminium profiles that are extruded, stress-relieved through heat treatment, and fully CNC-machined on all guide surfaces. All holes and threads are pre-machined at the factory – ensuring perfect alignment without T-slot nuts or manual adjustments.
With closed-loop stepper motors, backlash-free C5 ball screws, 15 mm Z1 linear rails and a powerful 2.2 kW spindle, the RUIX MK1 delivers impressive dynamics and repeatability. The grblHAL-based 4-axis control system features a modern 32-bit architecture and integrated safety relay – making it a reliable and future-ready solution for both professional users and demanding hobbyists.
Starting at CHF 5200.–, the RUIX MK1 offers a carefully engineered entry into high-precision CNC milling – solidly built, dependable in operation, and made for real results.
Technical Specifications
Machine Overview
- Manufacturer: Richner-Precision
- Model: RUIX MK1
- Machine type: CNC gantry milling machine (benchtop model)
- Axes: 3 main axes (X, Y, Z), 4th axis prepared
Applications
- Precision milled parts for one-offs, small series and prototyping
- Model making and demanding small-scale production
- Shopfitting, signage, furniture and interior construction
- Machining of wood, plastics, aluminium and non-ferrous metals
- Training, workshops and research
Precision & Mechanics
- Drive resolution: 0.00625 mm
- Drives: 16 mm C5 ball screws
- Linear guides: 15 mm rails with medium preload
- Motors: 57 mm closed-loop stepper motors
- Max. feed rate: 15 m/min
- Main frame: Custom aluminium profiles, heat-treated and fully surface-milled
- Side plates: 25 mm solid machined aluminium
- Table system: Hybrid table with T-slot profiles and MDF panels
Spindle
- Spindle power: 3 HP (2.2 kW)
- Spindle speed: 0–24'000 RPM, stepless control
- Spindle type: Air-cooled with ER20 collet system
- Frequency inverter: Mitsubishi VFD with line filter (RCD-compatible)
- Tool change: Manual
Control System
- Controller: Dominator 32-bit, 5-axis, standalone
- Program memory: 32 GB (expandable optional)
- Homing: Inductive, non-contact limit switches
- Interfaces: 1× USB-A for program data via memory stick
Safety Systems
- Integrated safety relay with dual-channel shutdown
- EMC-compliant wiring with full line filtering
Power Supply
- Power connection: 230 V, 50/60 Hz (single-phase)
- Max. current draw: 11 A
Dimensions & Weight
- Travel (X × Y × Z): 1260 × 780 × 170 mm
- Footprint: 1580 × 1070 mm (L × W)
- Height (machine only): 560 mm
- Height with stand: 1268 mm
- Machine weight: approx. 80 kg
- Weight with stand: approx. 100 kg
Optional Accessories
- Machine stand
- 2.2 kW spindle with Mitsubishi VFD (plug-and-play)
- Dust shoe (extraction system)
- Collets, milling tools
